10-00493

The metal interleaf incorporated in the design provides a higher compression to shear stiffness ratio, thereby increasing the load capacity in the compression or combined compression and shear modes. The 17-1780 engine mounting features a void in the rubber section to allow the use of a central snubber device. 17-1780 can be fitted with a rebound washer for mobile applications.

Typical applications:

Vibratory rollers
Small vibrating screens
Small engines

Compression:

Vertical Min Static load Kg0 Kg

Vertical Max Static load Kg250 Kg

Vertical Max Deflection2.80 mm

Hardness:

Hardness60 IRHD

Compound Type:

Compound Type16X

Drawing No:

Drawing No17-1392

Shear:

Vertical Min Static load N0 N

Vertical Max Static load N2452.50 N

Stiffness:

Vertical Static Stiffness870

Vertical Dynamic Stiffness1088

Reference:

ReferenceCircular

Others:

Fail SafeNo

3D modelYes

DrawingYes

ImageYes

CommentsAS10-00493-02

Max Bolt Torque:

Max Bolt Torque59 Nm

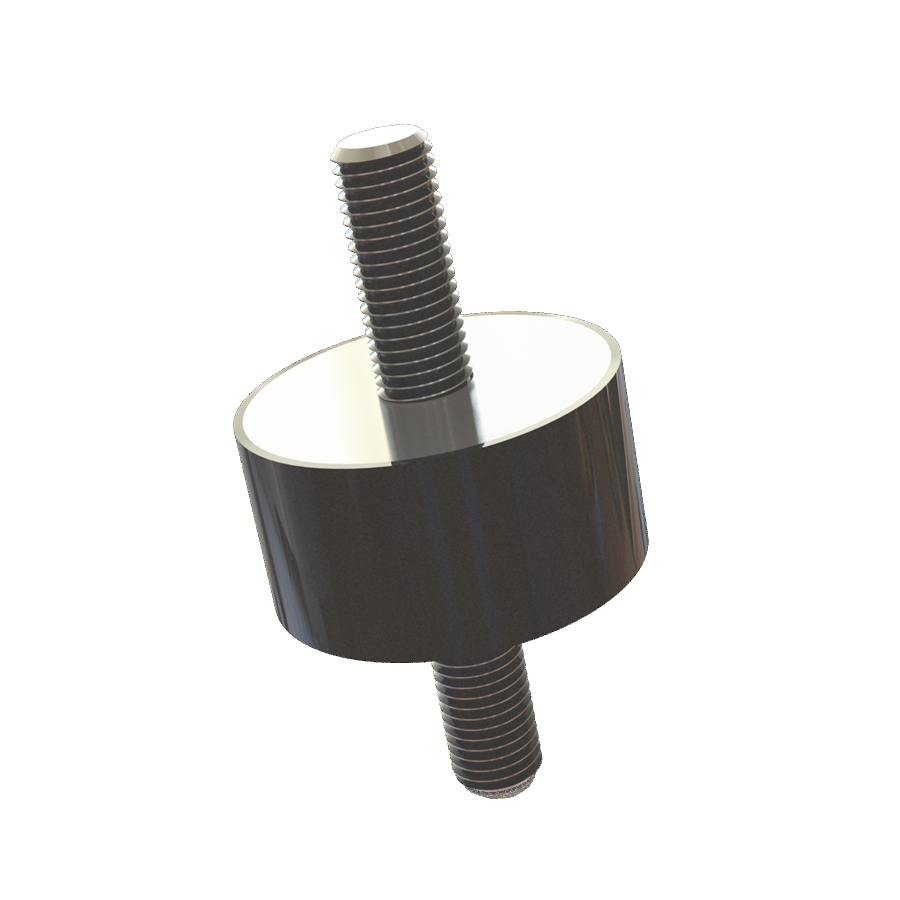

SAW Mount Circular - 10-00493
