10-00115

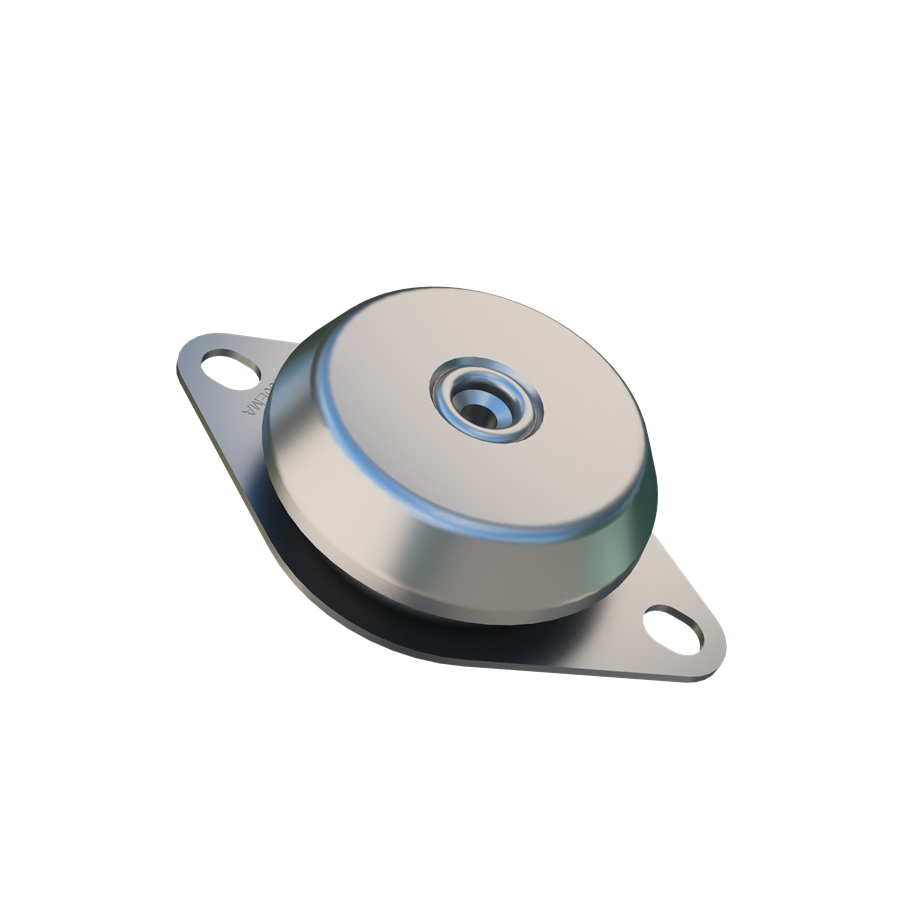

The RAEM is a universal mounting for applications demanding maximum vibration isolation. It is a further development of the RA mount, where EM stands for ’extra movement’ and is suitable for both light and heavy machines. For normal speeds of 1500 RPM the RAEM type provides a degree of isolation of 85-95%, and gives good isolation with low frequency machines.

Advantages:

• RAEM offers nominally 70% extra deflection over standard RA mounts
• Wide load rating options, 30-3400 kg
• Corrosion protected to cope with arduous environments on land or marine applications
• Fitted as standard with an integral fail-safe device with resilient stop, making the RA ideal for use in mobile applications
• Domed shape cover to protect against oil contamination
• The RAEM mounts can accommodate occasional vertical shock loads up to 5G and shock loads up to 2G in other directions.
