10-00179

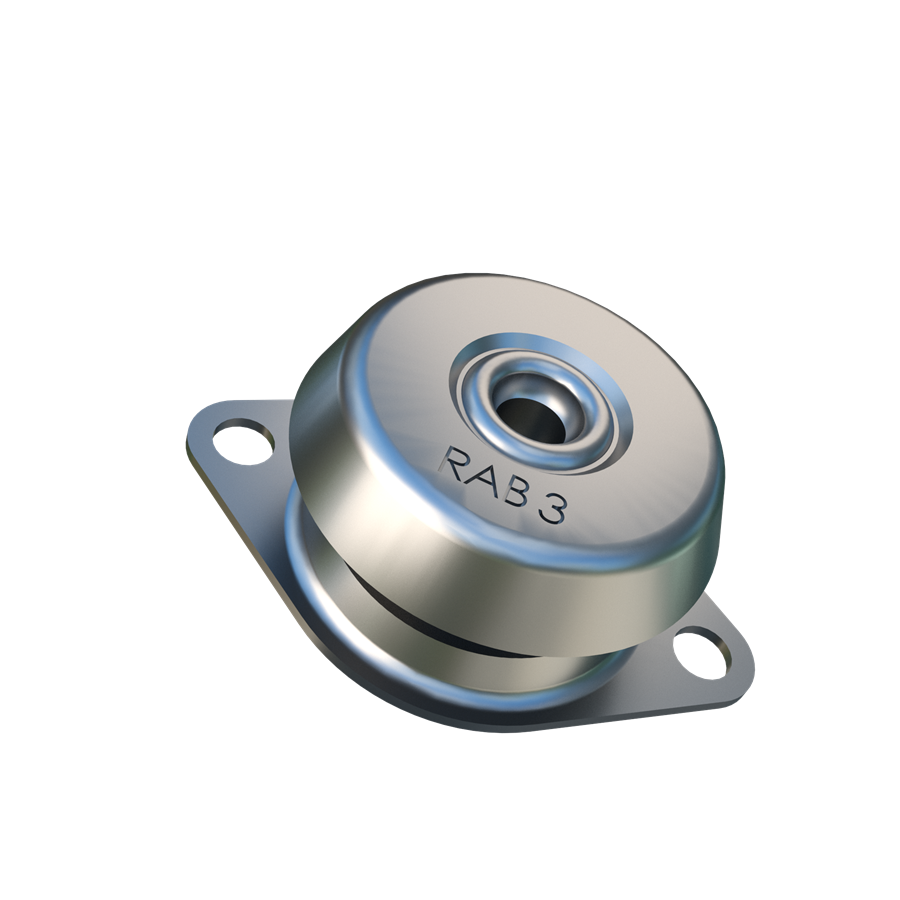

Similar in design to the RA and RAEM range, the RAB uses rubber in shear and compression for optimum stiffness characteristics and horizontal stability. Especially effective on small 1, 2 and 3 cylinder diesel engines where the special compound employed provides effective isolation of vibration while eliminating much of the excessive movement normally associated with 1-3 zinc plated cylinder engines.

Advantages:

• Rubber features are utilized effectively combining compression and shear
• Tight Tolerances on dynamic stiffness rate for accurate vibration calculations
• Loading rating options, 10-130 kg
• Corrosion protected to cope with arduous environments on land or marine applications
• Fitted as standard with an integral fail-safe device with resilient stop, making the RA ideal for use in mobile applications
• Domed shape cover to protect against oil contamination
• The RAB mounts can accommodate occasional vertical shock loads up to 5G and shock loads up to 2G in other directions.
