96535

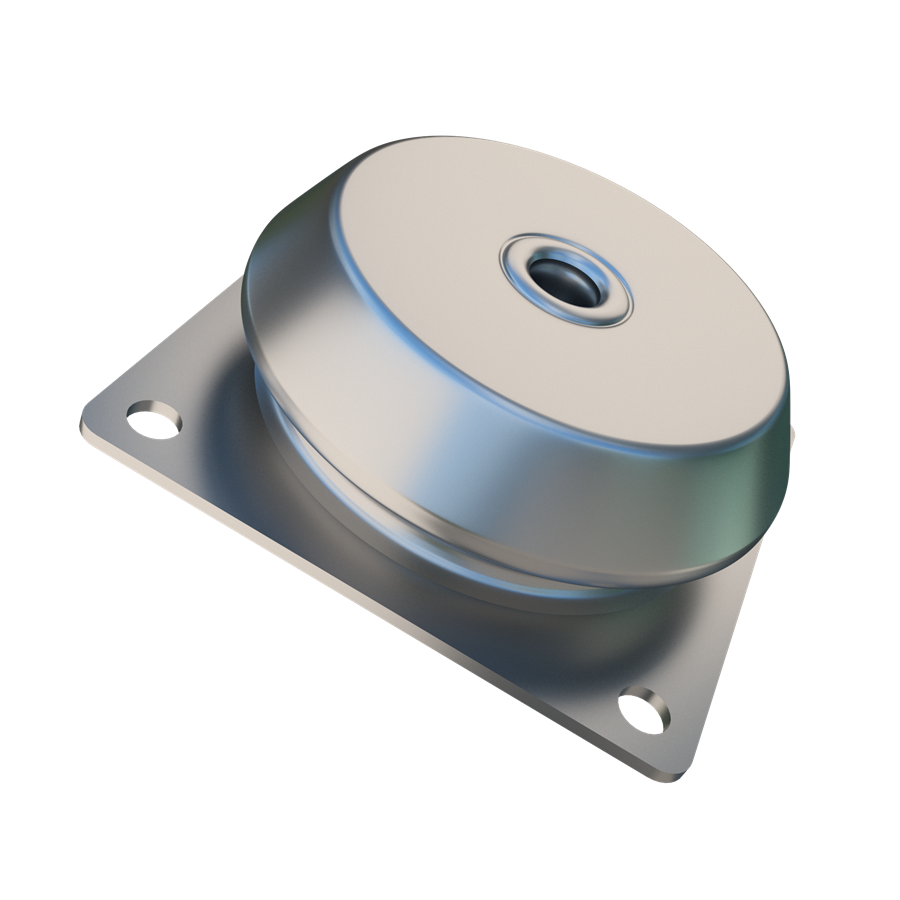

RA mount uses the rubber profile in shear and compression to obtain good vertical flexibility with the advantage of horizontal stability. For normal speeds of approx. 1500 RPM, the RA provides a degree of isolation of 75-85%. For better isolation, the alternative RAEM or M-Series can be chosen.

Advantages:

• Rubber features are utilized effectively combining compression and shear wide load rating options, 40-2100 kg
• Corrosion protected to cope with arduous environments on land or marine applications
• Domed shape cover to protect against oil contamination
• Fitted as standard with an integral fail-safe device with resilient stop, making the RA ideal for use in mobile applications
• The RA mounts can accommodate occasional vertical shock loads up to 5G and shock loads up to 2G in other directions
