96806

Designed and developed by Trelleborg AVS, the Cushyfoot mounting features two rubber elements used in shear and compression, to provide superior stiffness characteristics for the isolation of a wide array of vibration frequencies.

Compression:

Vertical Min Static load Kg500 Kg

Vertical Max Static load Kg190 Kg

Vertical Max Deflection6 mm

Hardness:

Hardness50 IRHD

Compound Type:

Compound Type16x

Drawing No:

Drawing No050 18 001

Shear:

Vertical Min Static load N500 N

Vertical Max Static load N1863.90 N

Stiffness:

Vertical Static Stiffness310

Vertical Dynamic Stiffness357

Reference:

ReferenceM12

Others:

Fail SafeNo

3D modelYes

DrawingYes

ImageYes

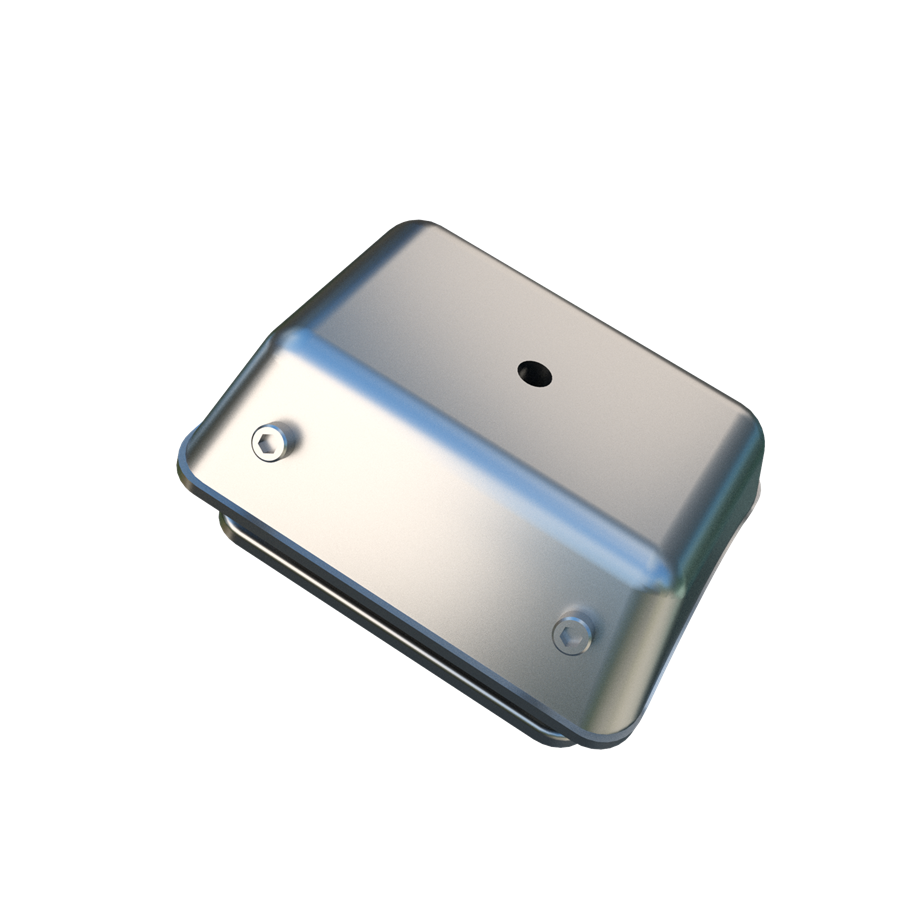

Cushyfoot - 96806
