96802

Designed and developed by Trelleborg AVS, the Cushyfoot mounting features two rubber elements used in shear and compression, to provide superior stiffness characteristics for the isolation of a wide array of vibration frequencies.

Compression:

Vertical Min Static load Kg1600 Kg

Vertical Max Static load Kg650 Kg

Vertical Max Deflection5.90 mm

Hardness:

Hardness50 IRHD

Compound Type:

Compound Type16x

Drawing No:

Drawing No050 18 002

Shear:

Vertical Min Static load N1600 N

Vertical Max Static load N6376.50 N

Stiffness:

Vertical Static Stiffness1080

Vertical Dynamic Stiffness1242

Others:

Fail SafeNo

3D modelYes

DrawingYes

ImageYes

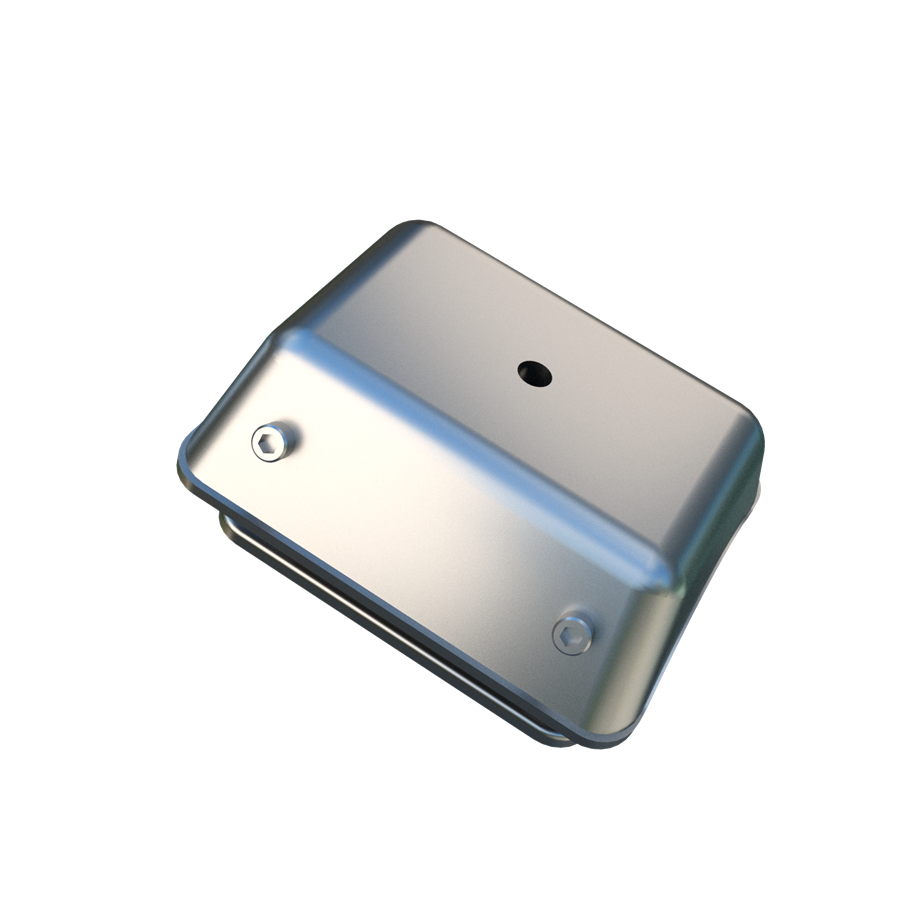

Cushyfoot - 96802
