96800

Designed and developed by Trelleborg AVS, the Cushyfoot mounting features two rubber elements used in shear and compression, to provide superior stiffness characteristics for the isolation of a wide array of vibration frequencies.

Compression:

Vertical Min Static load Kg2200 Kg

Vertical Max Static load Kg850 Kg

Vertical Max Deflection10.80 mm

Hardness:

Hardness60 IRHD

Compound Type:

Compound Type16x

Drawing No:

Drawing No050 18 004

Shear:

Vertical Min Static load N2200 N

Vertical Max Static load N8338.50 N

Stiffness:

Vertical Static Stiffness770

Vertical Dynamic Stiffness963

Others:

Fail SafeNo

3D modelYes

DrawingYes

ImageYes

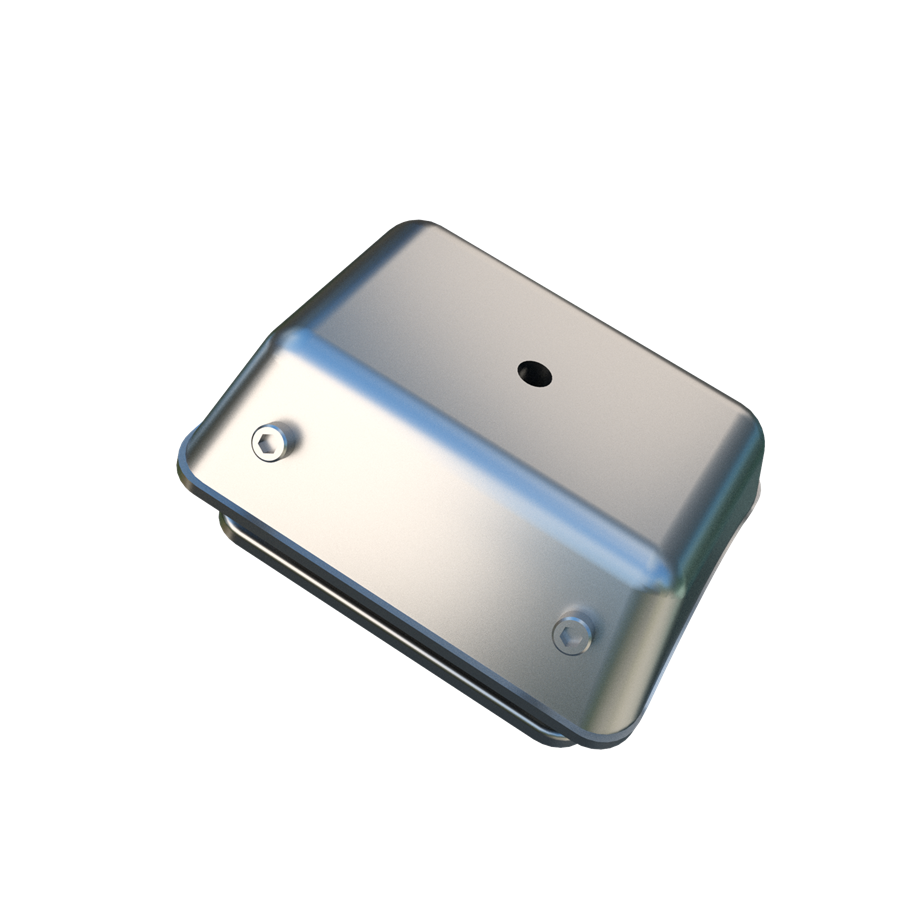

Cushyfoot - 96800
