10-04120

Designed and developed by Trelleborg AVS, the Cushyfoot mounting features two rubber elements used in shear and compression, to provide superior stiffness characteristics for the isolation of a wide array of vibration frequencies.

Compression:

Vertical Min Static load Kg0 Kg

Vertical Max Static load Kg1280 Kg

Vertical Max Deflection13 mm

Hardness:

Hardness60 IRHD

Compound Type:

Compound Type16x

Drawing No:

Drawing No17-0346-1

Shear:

Vertical Min Static load N0 N

Vertical Max Static load N12556.80 N

Stiffness:

Vertical Static Stiffness785

Vertical Dynamic Stiffness981

Others:

Fail SafeNo

3D modelYes

DrawingYes

ImageYes

CommentsNo Application sheet

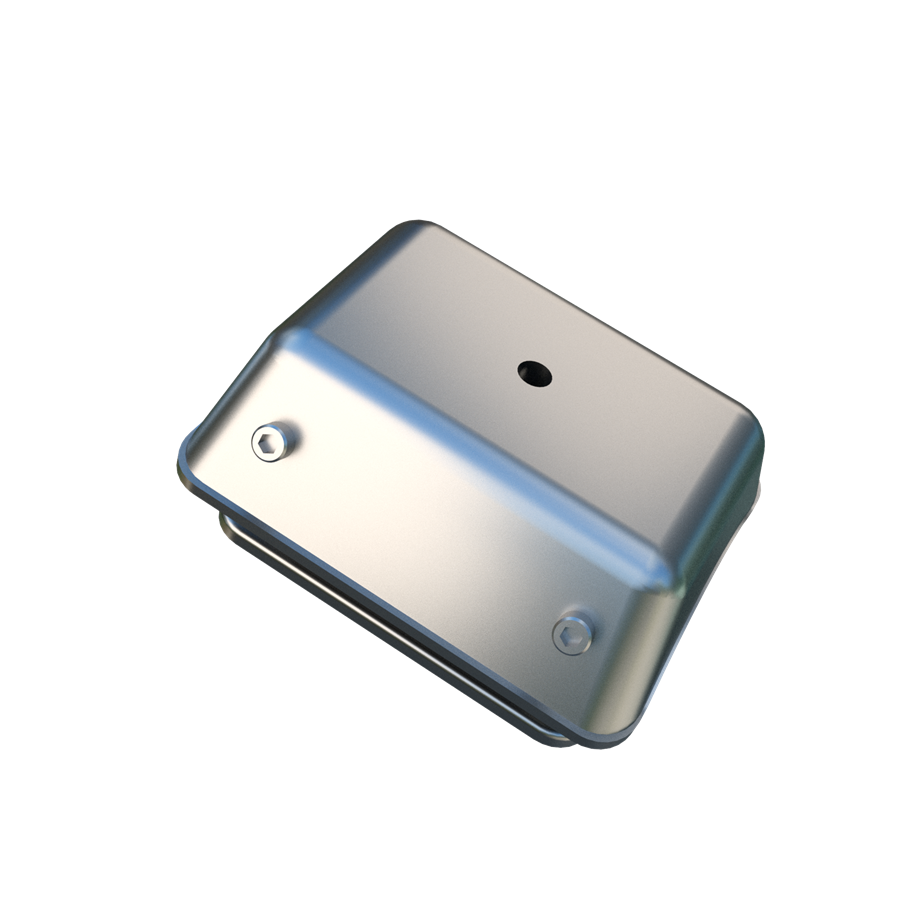

Cushyfoot - 10-04120
