90827

The CAB mount has been designed to provide optimum suspension characteristics. This has been achieved through ensuring the Compression and Shear stiffness characteristics being relatively stiff in their respective directions. The CAB mounts can withstand small shock loadings to help improve driving conditions for the operator. The mount should be installed with washers top and bottom to ensure a failsafe system.

Compression:

Vertical Min Static load Kg82 Kg

Vertical Max Static load Kg430 Kg

Vertical Max Deflection7 mm

Hardness:

Hardness60 IRHD

Compound Type:

Compound Type16x

Drawing No:

Drawing No058 18 001

Shear:

Vertical Min Static load N800 N

Vertical Max Static load N4218.30 N

Stiffness:

Vertical Static Stiffness620

Vertical Dynamic Stiffness775

Others:

Fail SafeYes

3D modelYes

DrawingYes

ImageYes

Max Bolt Torque:

Max Bolt Torque35 Nm

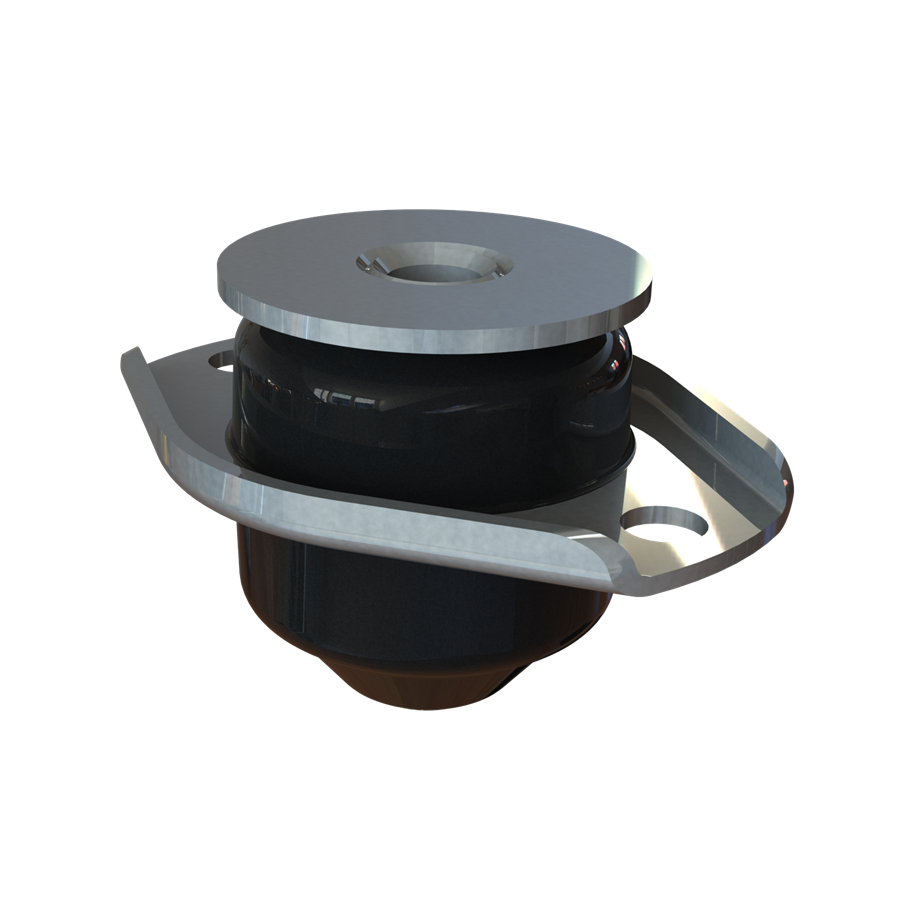

Cab Mount - 90827
