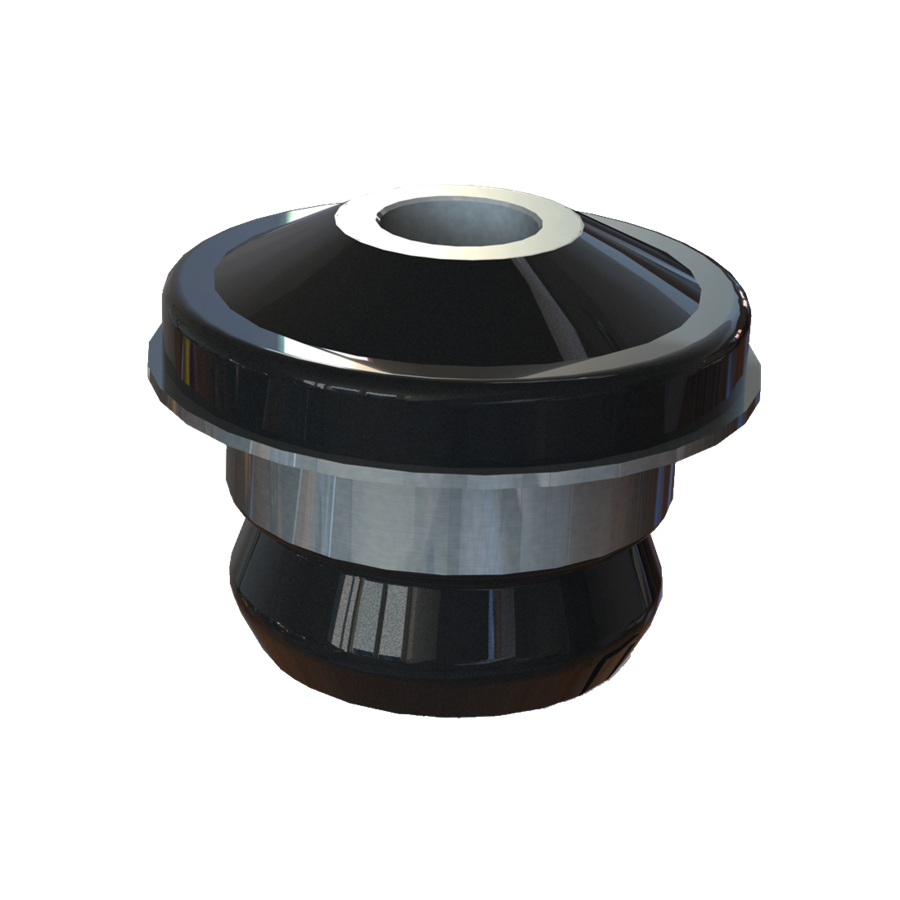

The CAB mount has been designed to provide optimum suspension characteristics. This has been achieved through ensuring the Compression and Shear stiffness characteristics being relatively stiff in their respective directions. The CAB mounts can withstand small shock loadings to help improve driving conditions for the operator. The mount should be installed with washers top and bottom to ensure a failsafe system.

Compression:

Vertical Min Static load Kg15 Kg

Vertical Max Static load Kg75 Kg

Vertical Max Deflection2 mm

Hardness:

Hardness45 IRHD

Compound Type:

Compound Type16x

Drawing No:

Drawing No11-1027

Shear:

Vertical Min Static load N147 N

Vertical Max Static load N736 N

Stiffness:

Vertical Static Stiffness400

Vertical Dynamic Stiffness440

Others:

Fail SafeYes

3D modelYes

DrawingYes

ImageYes

CommentsAS20-01107-01

Max Bolt Torque:

Max Bolt Torque380 Nm
