20-01035

The CAB mount has been designed to provide optimum suspension characteristics. This has been achieved through ensuring the Compression and Shear stiffness characteristics being relatively stiff in their respective directions. The CAB mounts can withstand small shock loadings to help improve driving conditions for the operator. The mount should be installed with washers top and bottom to ensure a failsafe system.

Compression:

Vertical Min Static load Kg36 Kg

Vertical Max Static load Kg180 Kg

Vertical Max Deflection2 mm

Hardness:

Hardness65 IRHD

Compound Type:

Compound Type16x

Drawing No:

Drawing No11-1028

Shear:

Vertical Min Static load N353 N

Vertical Max Static load N1766 N

Stiffness:

Vertical Static Stiffness981

Vertical Dynamic Stiffness1275

Others:

Fail SafeYes

3D modelYes

DrawingYes

ImageYes

CommentsAS20-01035-01

Max Bolt Torque:

Max Bolt Torque250 Nm

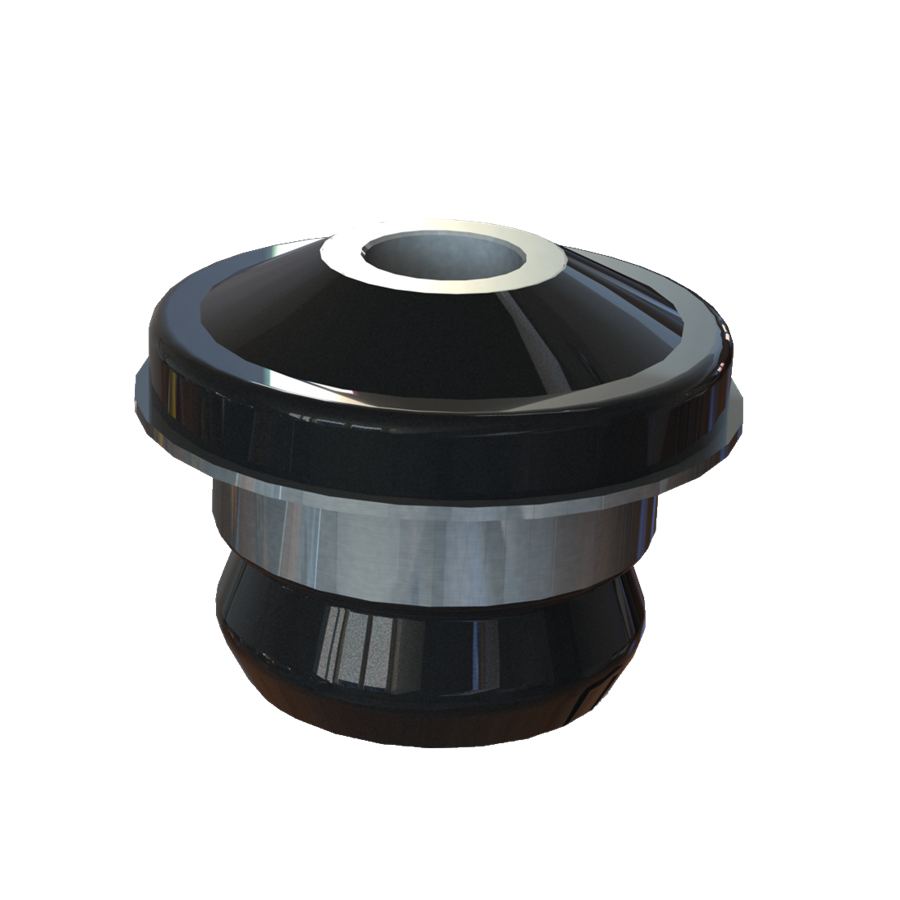

Cab Mount - 20-01035
