10-00598

The CAB mount has been designed to provide optimum suspension characteristics. This has been achieved through ensuring the Compression and Shear stiffness characteristics being relatively stiff in their respective directions. The CAB mounts can withstand small shock loadings to help improve driving conditions for the operator. The mount should be installed with washers top and bottom to ensure a failsafe system.

Compression:

Vertical Min Static load Kg50 Kg

Vertical Max Static load Kg410 Kg

Vertical Max Deflection2 mm

Hardness:

Hardness45 IRHD

Compound Type:

Compound Type43x

Drawing No:

Drawing No17-1814

Shear:

Vertical Min Static load N491 N

Vertical Max Static load N4022.10 N

Stiffness:

Vertical Static Stiffness1797

Vertical Dynamic Stiffness3774

Others:

Fail SafeYes

3D modelYes

DrawingYes

ImageYes

CommentsAS10-00598-01

Max Bolt Torque:

Max Bolt Torque270 Nm

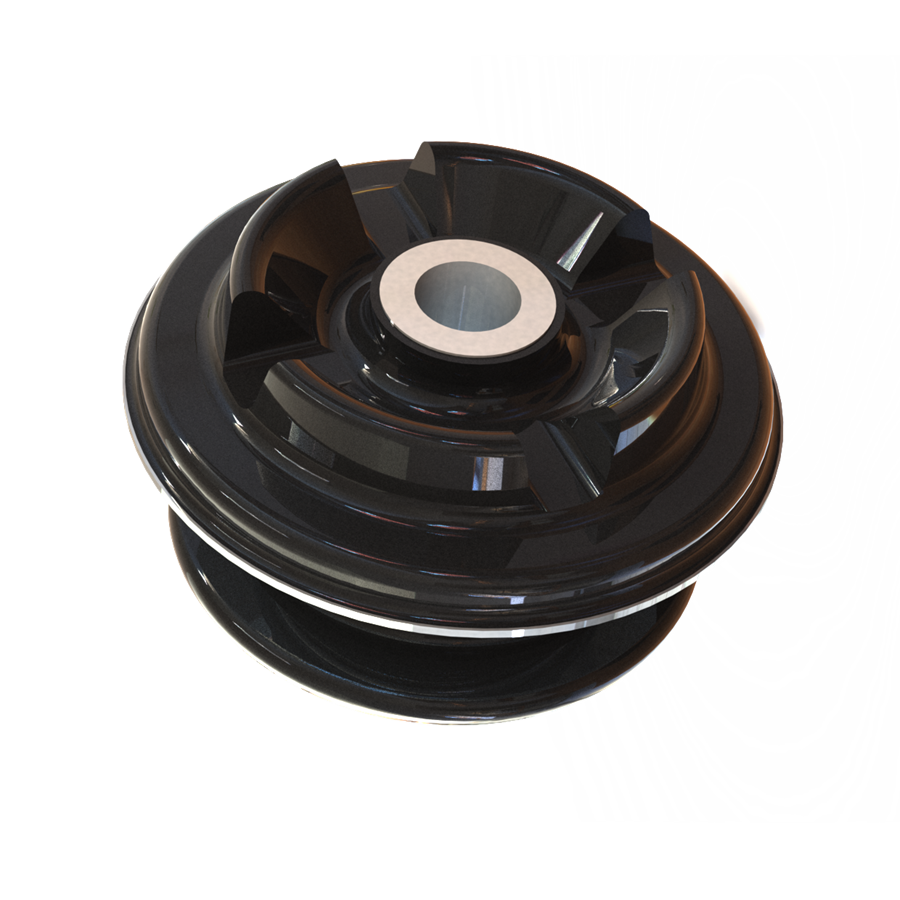

Cab Mount - 10-00598
