10-00555

The CAB mount has been designed to provide optimum suspension characteristics. This has been achieved through ensuring the Compression and Shear stiffness characteristics being relatively stiff in their respective directions. The CAB mounts can withstand small shock loadings to help improve driving conditions for the operator. The mount should be installed with washers top and bottom to ensure a failsafe system.

Compression:

Vertical Min Static load Kg170 Kg

Vertical Max Static load Kg500 Kg

Vertical Max Deflection4 mm

Hardness:

Hardness60 IRHD

Compound Type:

Compound Type16x

Drawing No:

Drawing No17-1650-1

Shear:

Vertical Min Static load N1668 N

Vertical Max Static load N4905 N

Stiffness:

Vertical Static Stiffness1200

Vertical Dynamic Stiffness1500

Others:

Fail SafeYes

3D modelYes

DrawingYes

ImageYes

CommentsAS10-00555-01

Max Bolt Torque:

Max Bolt Torque180 Nm

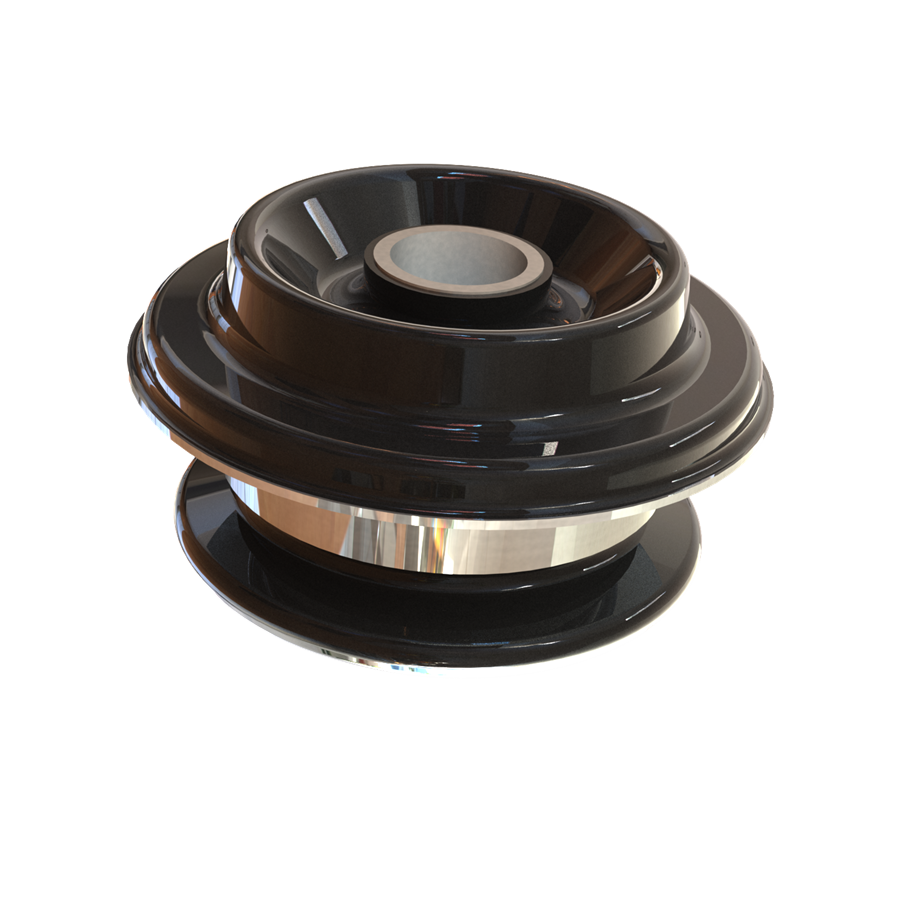

Cab Mount - 10-00555
