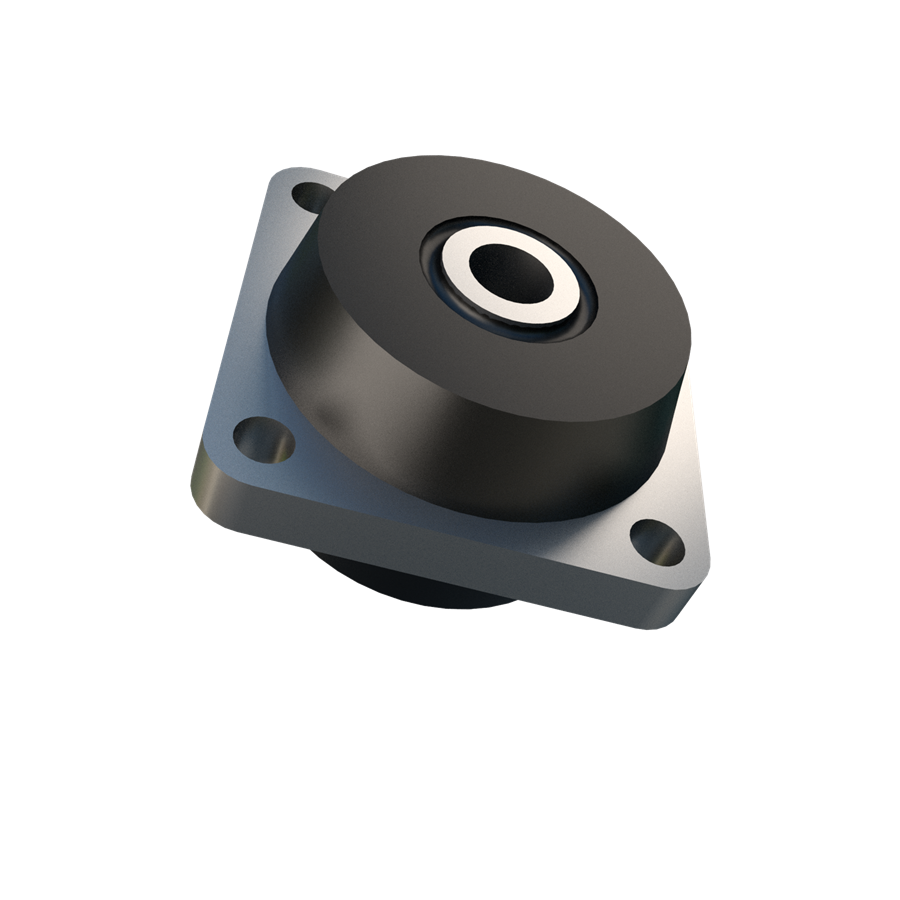

Cab Mount - 10-00440
The CAB mount has been designed to provide optimum suspension characteristics. This has been achieved through ensuring the Compression and Shear stiffness characteristics being relatively stiff in their respective directions. The CAB mounts can withstand small shock loadings to help improve driving conditions for the operator. The mount should be installed with washers top and bottom to ensure a failsafe system.
Compression:
Vertical Min Static load Kg90 Kg
Vertical Max Static load Kg300 Kg
Vertical Max Deflection3 mm
Hardness:
Hardness45 IRHD
Compound Type:
Compound Type16x
Drawing No:
Drawing No17-0890
Shear:
Vertical Min Static load N883 N
Vertical Max Static load N2943 N
Stiffness:
Vertical Static Stiffness1027
Vertical Dynamic Stiffness1130
Others:
Fail SafeYes
3D modelYes
DrawingYes
ImageYes
CommentsAS17-0890-00
Max Bolt Torque:
Max Bolt Torque250 Nm
